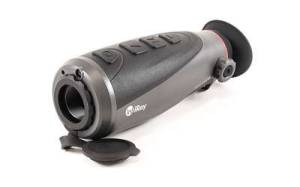

INFIRAY Outdoors AFFO R+ AP13 256x192 13mm Thermal Monocular (Black)
The InfiRay Outdoor AFFO series is an affordable and compact thermal imager designed for easy one-handed operation. This highly versatile imager is rugged yet lightweight, making it ideal for many applications such as law enforcement, hunting, search and rescue, and security. Powered by a high-performance 12µm sensor, the AFFO series uses next-generation Reality+ image processing to provide a crisp, clear viewing experience that outperforms comparable economy imagers. The user-friendly interface has a built-in stadiametric rangefinder, picture-in-picture function, hotspot tracking, internal recording, and a 9+ hour run-time. Capture vivid, realistic photos and videos in any weather or lighting conditions, taking your thermal imaging experience to the next level.
Optics
- Display Type: AMOLED
- Eye Relief: 20mm
- Objective Focal Length: 13mm
- Digital Magnification: 4X, stepped
- Diopter Range: -7 - +2
- Vertical Angular Field of View: 8.4°
- Horizontal Angular Field of View: 13.5°
- Focusing Mechanism: Fixed Focus
- Objective F#: 0.9
- Objective Diameter: 13mm
- Objective Lens Material: Germanium
- Display Resolution: 600×400
- Detection Range: 670 Yards
- Optical Magnification: 2X
Features and Performance
- Warranty: 5 Years
- Startup Time: Under 10 Seconds
- Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
- Picture-in-Picture: Yes
- Storage Capacity: 8GB
- Connector Output: Power/Data
- User-Updatable Firmware: Yes
- Mobile App: Yes
- Run Time: 9+
- Power Source: USB-C External, Built-In Battery Pack
- Stand-by Mode: Yes
- Connector Type: USB-C
- External Power Source: USB-C
- Country of Manufacture: China
- Wifi: Yes
- Onboard Recording: Yes
- Image Capture: Yes
Environmental Specifications
- Operating Temperature Range: -4°F~122°F
- Recoil Rating: Not rated for recoil
- Ingress Protection: IP67
Physical
- Mounting Interface: 1/4-20
- Housing Material: Polymer
- Weight: 12.0 Oz.
- Height: 2.36
- Width: 2.36
- Length: 6.29
Sensor Specifications
- Sensor Type: Reality+
- Sensor Pixel Size: 12μm
- Thermal Sensitivity: <40mK
- Non-Uniformity Correction (NUC): Automatic
- Sensor Frame Rate: 25hz
- Device Technology: Thermal Imaging
- Sensor Resolution: 256x192
Brand: iRay USA - SKU: AP13 - Model: AFFO R+ - UPC: 850048751088
| Manufacturer | iRay USA |
| Pricing Unit | EA |
| Model | AFFO R+ |
| UPC | 850048751088 |
| SKU | AP13 |
| Width | 5.8000 |
| Length | 9.4000 |
| Height | 3.4000 |
| Weight | 1.9700 |
| Secondary Description | INFIRAY Outdoors AFFO R+ AP13 256x192 13mm Thermal Monocular (Black) |
